Proteomic analysis of Fusarium oxysporum f. sp. cubense tropical race 4-inoculated response to Fusarium wilts in the banana root cells



Fusarium wilt of banana is one of the most destructive diseases in the world. This disease has caused heavy losses in major banana production areas. Except for molecular breeding methods based on plant defense mechanisms, effective methods to control the disease are still lacking. Dynamic changes in defense mechanisms between susceptible, moderately resistant, and highly resistant banana and Fusarium oxysporum f. sp. cubense tropical race 4 (Foc4) at the protein level remain unknown. This research reports the proteomic profile of three banana cultivars in response to Foc4 and transcriptional levels correlated with their sequences for the design of disease control strategies by molecular breeding.


Thirty-eight differentially expressed proteins were identified to function in cell metabolism. Most of these proteins were positively regulated after Foc4 inoculation. These differentially regulated proteins were found to have important functions in banana defense response. Functional categories implicated that these proteins were associated with pathogenesis-related (PR) response; isoflavonoid, flavonoid, and anthocyanin syntheses; cell wall strengthening; cell polarization; reactive oxygen species production and scavenging; jasmonic acid-, abscisic acid-, and auxin-mediated signaling conduction; molecular chaperones; energy; and primary metabolism. By comparing the protein profiles of resistant and susceptible banana cultivars, many proteins showed obvious distinction in their defense mechanism functions. PR proteins in susceptible ‘Brazil’ were mainly involved in defense. The proteins related to PR response, cell wall strengthening and antifungal compound synthesis in moderately resistant ‘Nongke No.1’ were mainly involved in defense. The proteins related to PR response, cell wall strengthening, and antifungal compound synthesis in highly resistant ‘Yueyoukang I’ were mainly involved in defense. 12 differentially regulated genes were selected to validate through quantitative real time PCR method. Quantitative RT-PCR analyses of these selected genes corroborate with their respective protein abundance after pathogen infection.


This report is the first to use proteomic profiling to study the molecular mechanism of banana roots infected with Foc4. The differentially regulated proteins involved in different defense pathways are likely associated with different resistant levels of the three banana cultivars.


Musa spp. is one of the most important economic and agricultural crops in the world. However, the annual production and attribute of banana are greatly reduced by various infectious diseases caused by fungi, bacteria, and viruses. Among these diseases, the Fusarium wilt of banana (a.k.a. panama disease) is the most important lethal disease; this disease is caused by the soil-borne fungus Fusarium oxysporum f. sp. cubense (E.F. Smith) Snyder and Hansen (F. oxysporum) [1, 2]. The disease has caused severe yield losses in all banana-producing areas in Asia, Africa, Australia, and the tropical Americas [3]. Furthermore, many planting areas are sharply declining because of F. oxysporum chlamydospores, which enable the fungi to persist in soil even under bad conditions and even in the absence of the host. Once soil is infected with F. oxysporum, susceptible cultivars can hardly be successfully replanted in the same land for the span of 30 years [4]. Currently, F. oxysporum is classified into four races based on pathogenic characterization on different banana cultivars. Among the four races of F. oxysporum, race 4 has been thought to be a major threat to the production of banana because it can affect almost all cultivars, except those infected with tropical race 1 and tropical race 2 [5].

F. oxysporum infection is divided into several steps: recognition of roots, attachment and colonization of root surface, penetration and colonization of root cortex, and hyphal proliferation of xylem vessels [6]. Particularly, the germination of fungal spores in soil is important in the entire process, which relies on the exudates of banana roots [7]. Therefore, roots are important for infection completion and plant growth because they supply nutrients for fungal proliferation and assimilate water and nutrients, respectively. In the present study, roots were the main organ used for the investigations. To date, methods for controlling the disease include only physical and chemical measures, all of which are ineffective because the spread of the disease in the world has not been suppressed. Therefore, the development of resistant cultivars through molecular breeding based on plant defense mechanisms is urgently needed, besides biological control of Fusarium wilt disease as one of implemented disease management was considered [8].

During the course of evolution, plants have developed an innate immune defense system against various pathogens [9]. The initiation of recognition of pathogen-associated molecular pattern (PAMP)-triggered immunity (PTI) is the first branch of plant immunity, which relies on PAMP patterns by pattern-recognition receptors (PRRs) at the cell surface [10]. During the course of PTI, several intracellular responses are associated with plant defense, including changes in Ca2+ flux, reactive oxygen species (ROS) and phytoalexin production, mitogen-activated protein kinase cascades, plant cell wall reinforcement at infection sites, and stomatal closure [11, 12]. Pathogens have successfully evolved strategies to suppress PTI by secreting effector proteins directly into the plant cell to enhance virulence [13]. However, some of these effectors are recognized by plant resistance (R) proteins in the second branch of plant immune system to activate effector-triggered immunity (ETI) [14]. Generally, ETI is similar to PTI, although the former is believed to be stronger and faster than the latter, which is often accompanied by hypersensitive response/localized cell death [15]. In addition, the plant immune system is regulated by hormone signaling molecules, such as salicylic acid (SA), jasmonic acid (JA), ethylene (ET), auxins, gibberillins, abscisic acid (ABA), cytokinins, brassinosteroids, and peptide hormones [14, 16]. Among these molecules, SA, JA, and ET are considered important in plant responses to abiotic and biotic stresses [11]. For example, the JA/ET pathway is involved in defense response to necrotrophic pathogens, herbivorous and wounding in Arabidopsis thaliana [17]. The ABA pathway has a crucial function in defense responses to drought, low temperature, salinity, and pathogens [18]. The auxin pathway has a significant function in defense responses to bacteria, necrotrophic fungi, and oomycete pathogens in A. thaliana; in addition, the interplay of auxin and antimicrobial secondary metabolites are involved in the same tryptophan pathway [19]. Antimicrobial secondary metabolites are mainly composed of phenolic compounds that are produced in the phenylpropanoid pathway to form lignins, lignans, neolignans, flavonoids, and anthocyanins [20].

Banana is an important monocot crop species, and the discovery of its defense mechanism is a prerequisite for disease control through molecular breeding. To date, research on the defense mechanism of banana against F. oxysporum is insufficient. Several defense-associated genes were identified in resistant banana roots by suppression subtractive hybridization [21]. Through transcriptomic profile analysis, Li et al. [22] found that the recognition of PAMPs and defense-related genes may contribute to Foc4 resistance in banana. With the completion of banana genome sequencing, proteomic profile analysis can provide a powerful tool to investigate the complex defense mechanism in banana [23]. In recent years, several proteomic studies have been successfully applied to investigate the effect of cold tolerance and osmotic stresses on banana growth and development [24, 25]. However, proteomic profiling of banana roots in response to F. oxysporum has yet to be performed.

The present study investigated the resistance mechanism of banana roots, revealing the dynamics of defense against F. oxysporum infection. The defense-related genes involved in susceptible and resistant cultivars were identified using two-dimensional electrophoresis (2-DE). A total of 43 differentially expressed proteins in pathogen-challenged banana roots were identified. These dynamic proteins were found associated with defense. They were involved in the recognition of pathogen signal transduction, the production of ROS and antifungal compounds, the expression of PR genes, and the reinforcement of cell walls. This report is the first to use proteomic profiling to study the molecular mechanism of banana roots infected with Foc4. This study revealed the dynamic changes in banana roots infected with Foc4. Our results provided insights into the defense mechanisms of banana and may serve as a basis for the control of Fusarium wilt.


Effect of Foc4 treatment on banana roots

In this study, we compared injury symptoms of roots in response to Foc4 infection in three banana cultivars (Figure 1). At 3 d after inoculation, no significant injury in the roots of highly resistant ‘Yueyoukang I’ was observed, and many progressively smaller lateral roots grew from the main roots. Less necrotic symptoms occurred in the roots of moderately resistant ‘Nongke No.1’ , and only a few lateral roots grew from the main roots. However, Foc4-susceptible ‘Brazil’ displayed severe necrotic symptoms in the roots.

Figure 1
figure 1

Disease symptoms from Musa roots with treatment of F. oxysporum . A: Banana roots/H2O control, and B: Banana roots/infection. Susceptible ‘Brazil’, moderately resisitant ‘Nongke No.1’ and highly resistant ‘Yueyoukang I’ were treated at 3D after F. oxysporum inoculation, compared with water-treated control.

2-DE analysis of pathogen-induced proteins in banana roots

To investigate the proteomic changes in banana roots in response to Foc4, we performed protein profile analysis on three banana cultivars, namely, susceptible ‘Brazil’ , moderately resistant ‘Nongke No.1’ , and highly resistant ‘Yueyoukang I’. Banana roots at the fourth leaf stage were sampled at the time points of 3D after Foc4 or H2O treatment. Subsequently, the total proteins of treated samples were extracted for 2-DE analysis using 18 cm gel strips. For each biological sample, proteomic profile analysis was conducted at least three times to obtain high reproducibility. All protein spots were distributed in molecular mass values ranging from 10 kDa to 100 kDa, with isoelectric point (PI) ranging from 4 to 7. Approximately 600 protein spots were reproducibly matched in Coomassie Brilliant Blue (CBB)-stained gels. A total of 58 protein spots exhibited significant differences (at least twofold changes) in abundance (Figure 2). Of these protein spots, 27 were detected in susceptible ‘Brazil’ , 16 were detected in moderately resistant ‘Nongke No.1’ , and 15 were detected in highly resistant ‘Yueyoukang I’ (Figure 3). Particularly, 7 separate protein spots were shared for any two cultivars, and 4 protein spots were shared for three cultivars (spot Nos. 2, 3, 7 and 13). Although most spots showed quantitative changes, 5 showed qualitative changes, of which 3 were only detected in infected susceptible ‘Brazil’ (spot Nos. 1, 11, and 12) and 2 were detected in control moderately resistant ‘Nongke No.1’ (spot Nos. 34 and 36). A total 53 spots (91%) showed similar variation patterns in three banana cultivars, of which 37 were up-regulated and 16 were down-regulated after the infection. Clearly, 27 spots showed up- or down-regulation in only one of the three banana cultivars, of which 14 (54%), 7 (58%), and 6 (40%) showed line-specific volume changes in susceptible ‘Brazil’ , moderately resistant ‘Nongke No.1’ , and highly resistant ‘Yueyoukang I’ , respectively. These results implied that the proteins might be independently or cooperatively involved in different cellular pathways in response to F. oxysporum infection in banana.

Figure 2
figure 2

Representative 2-DE of proteins from Musa roots with treatment of F. oxysporum . A, Brazil/H2O control; B, Brazil/infection; C, Nongke No.1/ H2O control; D, Nongke No.1/infection; E, Yueyoukang I/ H2O control; F, Yueyoukang I/infection. Proteins (550 μg) were loaded on an 18 cm IPG strip (pH 4–7) for IEF, following electrophoresis of 12% SDS-PAGE and CBB G-250 staining. The different expression spots present at the position of arrows are compared with their respective controls.

Figure 3
figure 3

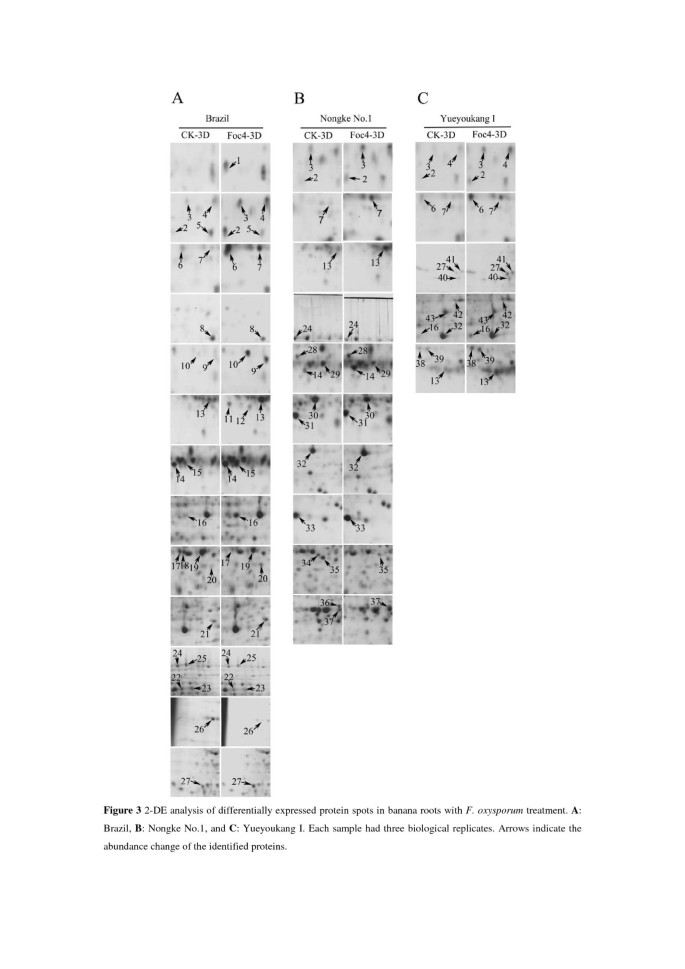

2-DE analysis of differentially expressed protein spots in banana roots with F. oxysporum treatment. A: Brazil, B: Nongke No.1, and C: Yueyoukang I. Each sample had three biological replicates. Arrows indicate the abundance change of the identified proteins.

Identification of differentially expressed proteins

To select defense proteins in banana roots that respond to Foc4, significant differential spots in CBB-stained gels were excised manually and subsequently analyzed by matrix-assisted laser desorption/ionization time-of-flight/time-of-flight (MALDI-TOF/TOF) mass spectrometer. A total of 43 spots were successfully identified by querying the Musa acuminate protein database (, MASCOT NCBInr protein database and Plant_EST database ( using PI and molecular weight values (Additional file 1: Table S1). Among these protein spots, 37 were matched to the M. acuminate proteins, only 1 was matched to the Job’s Tears (Coix lachryma-jobi L.) protein, and 5 (spot Nos. 3, 4, 5, 6, and 7) were matched to M. acuminate expressed sequence tags (ESTs) without any functional information. Protein spot No. 35 is shown in Supporting Information Figure 4 as an example. Most protein spots are unique. However, more than one spot with only small shifts in molecular weight and/or pI were occasionally identified as the same sequence in the gel, which is considered as a common feature of 2-DE [26]. The protein spots were identified as glutamine synthetase nodule isozyme (spot Nos. 17 and 18), putative aconitate hydratase (spot Nos. 24 and 25), heat shock 22 kDa protein (spot Nos. 9 and 10), and Germin-like protein 12–1 (spot Nos. 11, 12, 13, and 15). The occurrence of protein shifts is explained as posttranslational modification or degradation.

Figure 4
figure 4

Identification of No. 35 protein spot from banana roots inoculated with Foc4 by MALDI-TOF/TOF MS.

The predicted functions of the identified proteins were classified into nine categories based on the annotations from the Musa acuminate database, NCBInr database and the Gene Ontology database: defense (5%), secondary metabolism (11%), polysaccharose synthesis (3%), cell cytoskeleton (3%), oxidative-redox stress (21%), signal conduction (16%), molecular chaperones (13%), energy metabolism (3%), and primary metabolism (25%) (Figure 5, Additional file 1: Table S1). The protein identity of 14 up-regulated spots in susceptible ‘Brazil’ was determined: 2 are related to disease defense reactions, 3 are related to oxidative-redox stress, 2 are molecular chaperone proteins, 1 is related to energy, 2 are involved in primary metabolism, and 4 are ESTs. The protein identity of 9 up-regulated spots in moderately resistant ‘Nongke No.1’ was determined: 2 is an EST, 1 is a PR protein, 2 are related to oxidative-redox stress, 2 are involved in secondary metabolism, 1 is related to signal conduction, and 1 is related to cell polarization that is beneficial for defense. The protein identity of 14 up-regulated spots in highly resistant ‘Yueyoukang I’ was determined: 4 are ESTs, 2 are related to defense reactions, 1 is related to cell wall strengthening, 1 is a molecular chaperone, 1 is related to oxidative-redox stress, 2 are related to signal conduction, 2 are beneficial for primary metabolism, and 1 is involved in secondary metabolism. Overall, 23 up-regulated protein spots are associated with resistance or defense in the three banana cultivars, except for 4 ESTs. Among them, protein spot Nos. 2 and 16 are for basal resistance, spot Nos. 28 and 32 are for the production of lignin and antifungal compounds in secondary metabolism, spot No. 42 is for cell wall strengthening, spot No. 37 is for defense with cell polarization, spot Nos. 13, 14, and 15 are for the ROS production and scavenging system, spot Nos. 33, 38, and 39 are related to defense signal conduction, and spot Nos. 9, 10, and 40 are molecular chaperones in various stresses. These results implicated that antifungal secondary metabolism, lignin production, cell polarization, polysaccharose synthesis, and ABA defense signaling play key roles in the disease resistance mechanism of banana.

Figure 5
figure 5

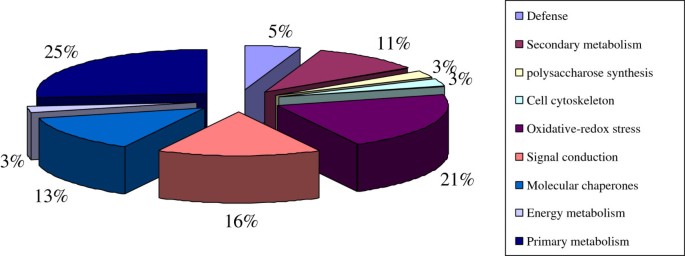

Functional category distribution of 38 identified proteins with known functions under the treatment with Foc4.

The protein identity of 10 down-regulated spots in susceptible ‘Brazil’ was determined: 6 are involved in primary metabolism, 2 are molecular chaperones, and 1 is a signal protein, except for 1 EST. The protein identity of 5 down-regulated spots in moderately resistant ‘Nongke No.1’ was determined: 3 are related to oxidative-redox stress, 1 is a signal protein, and 1 is related to the production of primary metabolites. Spot 43 is the only down-regulated spot in highly resistant ‘Yueyoukang I’ , and it is involved in primary metabolism. The protein identity of 15 down-regulated spots in all banana cultivars was determined: 7 is involved in primary metabolism, 2 are related to molecular chaperones, 2 are for signal conduction, and 3 are for antioxidant defense, except for 1 EST.

Transcript analysis of differential proteins

In order to verify the changed expression of mRNA from three banana cultivars in response to Foc4 infection and evaluate the correlation of transcriptional and protein level, twelve randomly genes involved in defense, secondary metabolism, oxidative-redox stress, signal conduction, molecular chaperones and primary metabolism were selected to validate through qRT-PCR method. In our study, the transcript levels of the pathogenesis-related protein 1, protein IN2-1 homolog B, L-ascorbate peroxidase, probable glutathione S-transferase GSTF1, isoflavone reductase homolog, auxin-induced gene PCNT115 and 14-3-3-like gene GF14-6 were well consistent with their protein levels after pathogen infection, while the levels of five transcripts did not correspond with their protein levels (Figure 6). Because gene expression is controlled at multiple regulatory levels at their transcriptional, post-transcriptional, translational, and post-translational levels, the validity of the correlation of mRNA and protein expression levels requires further study.

Figure 6
figure 6

Transcript analysis of 12 differentially expressed genes in response to Foc4 infection by qRT-PCR. A: Pathogenesis-related protein 1, B: Protein IN2-1 homolog B, C: NADP-dependent malic enzyme, D: Protein disulfide-isomerase, E: Caffeoyl-CoA O-methyltransferase, F: L-ascorbate peroxidase, G: Probable glutathione S-transferase GSTF1, H: Superoxide dismutase [Mn] 3.1, I: Isoflavone reductase homolog, J: Auxin-induced protein PCNT115, K: 14-3-3-like protein GF14-6, and L: Late embryogenesis abundant protein. Each bar represents the mean values ± standard deviation for three biology replicates.


The defense mechanism of other crops in response to infection has been widely studied at the molecular level. However, the defense mechanism of banana in response to infections remains obscure. To investigate dynamic changes in induced proteins, proteome profile analyses of three different banana roots were successfully performed. The significant differences of defense levels in banana roots were displayed at the time-points of 3D after Foc4 or H2O treatment. The defense proteins acting in response to F. oxysporum infection are involved in complex and effective pathways from susceptible ‘Brazil’ to highly resistant ‘Yueyoukang I’. A total of 43 differentially expressed proteins with known functions were identified by MALDI-TOF/TOF analysis; they were subsequently classified into nine categories according to their functions. These induced proteins play important roles in defense as a response to pathogen infection. The elucidation of these proteins is beneficial in understanding the complex resistance mechanisms against the fungal pathogen F. oxysporum at the proteome level.

Defense response proteins

PR proteins are effective in responding to fungal, bacterial, and viral infections. Consequently, this response is related to the development of systemic acquired resistance (SAR). Proteome analyses revealed that two PR proteins involved in defense were induced in both resistant and susceptible banana after pathogen infection. The proteins were identified as pathogenesis-related protein 1 (PR-1; No. 2) and RecName: Full = alpha-amylase inhibitor/endochitinase (No. 16). PR-1 is a dominant defense protein induced by pathogens, SA, or ET, which is commonly considered as a marker for SAR [27]. The expression patterns of PR-1 in response to oomycete and fungal pathogens were positively regulated in many plants [28]. For example, the antifungal protein of PR-1 in response to F. oxysporum was up-regulated in both GCTCV-218 and Williams [21]. RecName: Full = alpha-amylase inhibitor/endochitinase is a protein purified from the seeds of Job's Tears (C. lachryma-jobi L.); the antifungal protein was up-regulated to protect plants from insect feeding and fungal infection [29]. Two defense proteins were up-regulated in banana, of which the proteins PR-1 and RecName: Full = Alpha-amylase inhibitor/endochitinase were differentially regulated in susceptible ‘Brazil’ and highly resistant ‘Yueyoukang I’. Interestingly, PR-1 protein was only found in moderately resistant ‘Nongke No.1’. The results indicated that more defense genes were expressed in response to fungal infection in highly resistant ‘Yueyoukang I’ and susceptible ‘Brazil’ than moderately resistant ‘Nongke No.1’ , where other plant defense pathways were regulated in moderately resistant ‘Nongke No.1’.

Secondary metabolism-related proteins

Some enzymes associated with secondary metabolism play key roles in the synthesis of antifungal compounds and cell wall components, which are involved in the phenylpropanoid pathway and other pathways. In our study, four proteins involved in the phenylpropanoid pathway were identified as caffeoyl-CoA O-methyltransferase (CCOMT; No. 28), isoflavone reductase homolog (so-called IFR “homolog”; No. 32) and leucoanthocyanidin dioxygenase (LDOX; No. 34). S-adenosylmethionine synthase (SAM; No. 36) was identified as another protein in the secondary metabolism pathway. The proteins in the phenylpropanoid pathway were classified into three sub-pathways based on the following criteria: (i) isoflavonoids, (ii) flavonoids and anthocyanins, and (iii) lignin biosynthesis [30]. The IFR “homolog” is highly similar to IFR in catalyzing the synthesis of isoflavonoid phytoalexin medicarpin. IFR in alfalfa was rapidly induced in response to fungal pathogen [31]. The protein was up-regulated in highly resistant ‘Yueyoukang I’ and moderately resistant ‘Nongke No.1’. The results indicated that a large number of phytoalexins were synthesized to protect banana from Foc4 infection. CCOMT is a branch point enzyme of monolignol biosynthesis, which is beneficial for the lignifications of the cell wall in response to pathogen infection [32]. Down-regulation of CCOMT in transgenic alfalfa reduces guaiacyl lignin biosynthesis [33]. This protein was up-regulated in moderately resistant ‘Nongke No.1’. The results implied that the lignifications of the cell wall have important functions in response to Foc4 infection. LDOX is a key regulated enzyme for anthocyanin synthesis, which was up-regulated in response to various abiotic and biotic stresses, such as pathogen infection, UV light, high-intensity light, temperature, wounding, drought, and nutrient deficiency [34, 35]. The protein was observed to have disappeared in moderately resistant ‘Nongke No.1’ , which decreased end-products at the later stage of the pathway. Furthermore, the enzymes of the flavonoid pathway were not detected to change significantly in moderately resistant ‘Nongke No.1’. Consistent with our study, the defense of moderately resistant ‘Nongke No.1’ to Foc4 apparently does not dependent on the anthocyanin and flavonoid pathway. Overall, the different changes in the proteins of the anthocyanin and flavonoid pathways indicated that the plant might be transferring substrates between the flavonoid and anthocyanin pathways to increase the production of lignin and isoflavonoids. SAM indirectly plays an important role in plant defense by catalyzing the production of S-adenosyl-L-methionine, which supplies as a methyl-group donor in the biosynthesis of numerous secondary metabolites [36]. This protein can increase plant resistance in response to various abiotic stresses [3739]. SAM was observed to have disappeared in moderately resistant ‘Nongke No.1’. These results indicated that substrates of other secondary metabolism pathways were transferred into the synthesis of lignin and isoflavonoids in response to Foc4 infection.

Polysaccharose synthesis

Protein No. 42 was identified as alpha-1, 4-glucan-protein synthase (UDP-forming). UDP-forming is associated with the formation of cell wall polysaccharoses, including hemicellulosic and xylose, which is beneficial for the formation of physical barriers [40]. UDP-forming was up-regulated in maize in response to Trichoderma harzianum T22 [41]. Although the deposition of polysaccharoses in the cell wall confined the fungi to the outer root layer, the expression of UDP-forming was only up-regulated in highly resistant ‘Yueyoukang I’. Such results indicated that the formation of complex cell wall with different cell components is one of most effective defense strategies in response mechanisms to fungal degradation. This strategy was more evidently observed in highly resistant ‘Yueyoukang I’ than moderately resistant ‘Nongke No.1’ and susceptible ‘Brazil’.

Cell cytoskeletion

Protein No. 37 was identified as actin, which constitutes cell cytoskeleton that is involved in cell polarization defense in response to microbial attack. During the early stages of fungal infection, the activity of the actin pathway plays an important role in cell polarization defense by trafficking and secreting antimicrobial compounds to the infection site and sediment barrier material to the penetrated sites for cell wall enhancement, accompanied by the activity of defense gene PR-1 [4244]. By contrast, in the present study, the protein was only up-regulated in moderately resistant ‘Nongke No.1’. This result indicated that cell polarization defense may be more effective for early fungal infection in moderately resistant ‘Nongke No.1’ than in highly resistant ‘Yueyoukang I’ and susceptible ‘Brazil’.

Oxidative-redox stress

The rapid accumulation of ROS with their toxic potential, a phenomenon called oxidative burst, is a nearly ubiquitous response to abiotic and biotic stresses in plants. In the present study, only one protein was identified as Germin-like protein 12–1 (GLP, spot Nos. 11, 12, 13 and 15), which produces ROS. However, the high levels of ROS can lead to severe oxidative destruction of cell structures, such as nucleic acids, proteins, and lipids. To regulate oxidative-redox homeostasis, four antioxidant proteins were identified as protein IN2-1 (IN2-1; protein No. 14), L-ascorbate peroxidase (APX; protein No.29), glutathione S-transferase GSTF1 (GST; protein No. 30), and superoxide dismutase [Mn] (SOD; protein No. 31), which were activated in antioxidant systems to scavenge ROS. GLP catalyzes the production of H2O2 as oxalate oxidase or SOD in plant defense, which is induced by various stresses [45]. SOD (EC is believed to be among the first line of defense proteins to scavenge ROS, which catalyzes the dismutation of superoxide to H2O2 and oxygen [46]. The protein is also related to the activation of APX involved in the pathways of ascorbate and glutathione [47]. APX is a key enzyme that converts H2O2 to water, in addition to regulating redox signal transduction [48]. Protein IN2-1 is identified as a homolog of GST. In addition to their functions in herbicide detoxification, stress signaling conduction, and apoptosis regulation, GST and protein IN2-1 are glutathione peroxidases that function in ROS scavenging in various stresses [49]. The rapid accumulation of GLP is beneficial for resistance against rice blast and sheath blight [50]. The expression patterns of IN2-1/GST are complex under pathogen infection. For example, the infection caused by Aphanomyces euteiches (oomycota) increases the synthesis of IN2-1/GST in infected Medicago truncatula [51]. By contrast, the infection caused by rust fungi decreases their synthesis in infected bean [52]. GLP were up-regulated in three banana cultivars. Meanwhile, IN2-1 was up-regulated in susceptible ‘Brazil’ and moderately resistant ‘Nongke No.1’. These results indicated that maintenance of high levels of ROS is beneficial to defense effectively against the pathogen infection. In our study, the antioxidant enzymes APX, GST, and SOD were down-regulated in moderately resistant ‘Nongke No.1’. This finding is contrary to the results of up-regulated proteins in response to F. oxysporum [22]. These results indicated that antioxidative emzyme IN2-1 were induced to defense effectively against the pathogen infection in moderately resistant ‘Nongke No.1’ than the antioxidant enzymes APX, GST, and SOD.

Signal conduction

Host defense mechanisms were triggered by various early signal pathways in response to pathogen infection. Proteomic analysis showed that the signal proteins related to JA, ABA, and auxin in signaling pathways were differentially regulated in banana. Six spots were identified as signal proteins: putative horcolin (No. 1), abscisic stress-ripening protein 3 (ASR3; No. 8), abscisic stress ripening protein (ASR, No. 33), auxin-induced protein PCNT115 (AIP; No. 35), 14-3-3-like protein GF14-E (No. 38), and 14-3-3-like protein GF14-6 (No. 39). Horcolin is a new jacalin-related lectin specific to mannose, which may play an important role in the perception and transduction of hormones in response to abiotic/biotic stress [53]. The expression of TaJRLL1, a jacalin-related lectin in transgenic A. thaliana, increases resistance to Fusarium graminearum and Botrytis cinerea, which may be involved in the SA- and JA-dependent defense signal pathways [54]. ASR3 and ASR are stress-inducible proteins involved in ABA signal pathways, which respond to various stresses, including pathogen, drought, salt, cold, osmotic pressure, ABA, and injury [55]. ASR was up-regulated in soybean root in response to Fusarium solani f. sp. glycines [56]. Horcolin was induced in susceptible ‘Brazil’. On the contrary, ARS3 were down-regulated in susceptible ‘Brazil’. These results indicated that defense was regulated together by the conduction of JA and ABA signals. ARS was up-regulated in moderately resistant ‘Nongke No.1’ , signifying the active defense by the conduction of ABA signal. AIP is related to plant defense and auxin-mediated plant growth. Auxin and defense-related antimicrobial secondary metabolites are produced through the same tryptophan pathway [57]. The AIP in grapevine was down-regulated in response to phytoplasma infection [58]. In accordance with these previous results, the present results showed that AIP was down-regulated in moderately resistant ‘Nongke No.1’. This result indicated that the substrates of the auxin pathway were transferred into the production of defense-related secondary metabolites. The 14-3-3 family comprises ubiquitous proteins, which play important roles as regulators in plant cells; specifically, these proteins function in nitrogen assimilation, sucrose synthesis, H+-pump activation, and ABA signal transduction [59]. Moreover, 14-3-3-like proteins in barley were up-regulated in response to powdery mildew fungus [60]. Accordingly, the present results showed that the 14-3-3-like protein GF14-E and 14-3-3-like protein GF14-6 were up-regulated in highly resistant ‘Yueyoukang I’. This result indicated that various plant defenses were induced upon pathogen infection.

Molecular chaperones

Proteins function as molecular chaperones by maintaining cellular homeostasis, which includes protein folding, assembly, translocation, and degradation; protein and membrane stabilization; and refolding of proteins to nonnative state under stressful conditions [61]. In the present study, four proteins were identified as molecular chaperones, namely, heat shock 22 kDa protein (HSP 22; protein Nos. 9 and 10), T-complex protein 1 subunit gamma (TCP-1; protein No.22), protein disulfide-isomerase (PDI; protein No. 26), and late embryogenesis abundant protein (LEA; protein No. 40). HSP 22, a mitochondrial protein, is identified as a molecular chaperone that functions in facilitating the reactivation of denatured proteins and preventing the aggregation of heat-induced proteins [62]. TCP-1 aids in the folding and reassembly of some proteins, including nucleotide-binding proteins, actin, tubulin, and luciferase [63]. PDI acts as a molecular chaperone from the ferredoxin family, whose biochemical function in plant mitochondria remains unclear. However, reductive PDI has been associated to various roles, including removal of aberrant disulfides, folding of new proteins, and reduction of disulfides required in activating proteins involved in antioxidant defense [64]. LEA is a hydrophilic protein that acts as a molecular chaperone to maintain the stabilization of proteins, vesicles, and endomembranes in the sequestration of ions by binding water molecules [65]. In susceptible ‘Brazil’, HSP 22 was up-regulated, whereas TCP-1 and PDI were down-regulated. LEA was up-regulated in highly resistant ‘Yueyoukang I’. These results indicated that the proteins had different roles as molecular chaperones in the defense response to pathogen infection.

Energy metabolism

Protein No. 21 was identified as ferredoxin-NADP reductase. This protein catalyzes the production of NADPH to be supplied in CO2 fixation; however, a substantial fraction of NADPH is involved in the electron transport of various cell pathways, such as N and S assimilation and amino acid and fatty acid metabolism [66]. Aside from maintaining the homeostasis of NADPH/NADP, the protein is also considered as a key antioxidant that scavenges ROS under various environmental stresses [67]. The protein was up-regulated in susceptible ‘Brazil’ , suggesting that the protein is necessary to supply energy for the metabolic changes in infected plant cells and to reduce the damage of ROS.

Primary metabolism

Six proteins were involved in primary metabolism: glutamine synthetase nodule isozyme (GS; Nos. 17, 18 and 19), putative carboxyvinyl-carboxyphosphonate phosphorylmutase (CPPM; No. 20), NADP-dependent malic enzyme (NADP-ME; No. 23), putative aconitate hydratase (Nos. 24 and 25), fructokinase-1 (FRK-1; protein No. 27), fructokinase-2 (FRK-2; No. 41), and malate dehydrogenase (MDH; No. 43).

NADP-ME is an ubiquitous enzyme catalyzing malate for the production of pyruvate and NADPH, which could subsequently provide NADPH for the syntheses of lignin, flavonoid, and NADPH oxidase in plant defense [68, 69]. NADP-ME expression is up-regulated in defense responses in transgenic tobacco [70]. It is rapidly induced in the defense response to Magnaporthe grisea [71]. The protein was down-regulated in susceptible ‘Brazil’. Such results indicated that the suppression of lignin, flavonoid, and NADPH oxidase synthesis in susceptible banana causes a weak defense in response to Foc4 infection.

GS is a key enzyme catalyzing the ammonia assimilation and phenyl propanoid pathway in plants, which confers environment stress tolerance [72]. GS was down-regulated in susceptible ‘Brazil’, indicating that the synthesis of defense compounds was increased in defense reactions. CPPM mainly catalyzes the formation of an unusual C-P bond in the processing of metabolites. To date, data linking this role in plants are lacking; however, the protein is well known for the synthesis of antibiotic bialaphos in microorganisms [73]. CPPM was up-regulated in susceptible ‘Brazil’. The roles of these proteins need to be further investigated in the future. Aconitate hydratase and MDH are key enzymes for citric acid metabolism, also known as the tricarboxylic acid cycle (TCA cycle). The protein of aconitate hydratase catalyzes the production of citrate or isocitrate [74]. MDH is also an important enzyme involved in multiple metabolic pathways of TCA and photosynthesis, catalyzing the reversible reduction of oxaloacetate to malate [75]. Aconitate hydratase and MDH were down-regulated in susceptible ‘Brazil’ and highly resistant ‘Yueyoukang I’ , respectively. These results indicated that energy and substrates exhausted in metabolism were supplied by the other pathways. FRK-1 and FRK-2 are key enzymes of glycolysis in plants, which are both involved in the stress response of plant cells. Both enzymes also catalyze the phosphorylation of fructose to fructose-6-phosphate, which is a major substrate for many sugar metabolic pathways involved in glycolysis, starch biosynthesis, and the oxidative pentose pathway [76, 77]. In addition, fructokinases important functions as sugar sensors or signals in plant defense [78]. FRK-1 was up-regulated in susceptible ‘Brazil’ , whereas FRK-1 and FRK-2 were up-regulated in highly resistant ‘Yueyoukang I’. These results indicated that the conduction of sugar signal can significantly strengthen plant defense.


This study is the first to perform protein profiling of banana roots in response to Foc4 infection. Proteome analyses revealed that various proteins are involved in complex defense pathways, including PR-related proteins, secondary metabolites, signal conduction proteins, cell wall polysaccharose synthesis proteins, cell polarization defense proteins, and oxidative-redox homeostasis proteins. The temporal expression patterns of pathogen-responsive proteins in resistant and susceptible banana cultivars may provide useful information about the defense mechanisms of banana. These mechanisms were more evident in moderately resistant ‘Nongke No.1’ and highly resistant ‘Yueyoukang I’ than in susceptible ‘Brazil’. The proteins of PR and antifungal compounds were found to play main roles in the chemical resistance of banana cultivars against the fungal infection in the experiment. PR proteins were induced in three banana cultivars. Antifungal compound synthesis proteins were induced in moderately resistant ‘Nongke No.1’ and highly resistant ‘Yueyoukang I’. Furthermore, other secondary metabolites were only rapidly induced in moderately resistant ‘Nongke No.1’ , which was considered to be a more effective pathway in moderately resistant ‘Nongke No.1’ than in highly resistant ‘Yueyoukang I’. Meanwhile, the structure of physical barriers was believed to confine the expansion of Foc4 in extracellular tissues based on cell wall thickness and lignifications, and polysaccharide precipitation. The lignin synthesis-related protein was down-regulated and up-regulated in susceptible ‘Brazil’ and moderately resistant ‘Nongke No.1’ , respectively. Moreover, the cell wall polysaccharide synthesis-related protein was induced in highly resistant ‘Yueyoukang I’. Finally, the defense mechanism is coordinated by several enzymes, such as signal-conductor proteins and molecular chaperones. Above all, PR and ROS were found to play main roles in defense in susceptible ‘Brazil’. PR, ROS and antifungal compounds at the infected sites and cell wall lignifications play roles in defense in moderately resistant ‘Nongke No.1’. Meanwhile, PR, antifungal compounds, and complex cell wall proteins play roles in defense in highly resistant ‘Yueyoukang I’. 12 randomly proteins involved in defense, secondary metabolism, oxidative-redox stress, signal conduction, molecular chaperones and primary metabolism were performed to validate the correlation of transcriptional and protein levels through qRT-PCR. Transcriptional levels of most selected genes were consistent with their respective protein abundance after pathogen infection. The present study provided important clues for understanding the defense mechanism of banana against pathogen infection. Our results will be useful in designing strategies to cure and control diseases.


Plant materials and Foc 4 inoculation

Three banana cultivars belonging to the same genomic group were selected in this study, including banana cv. ‘Brazil’ (Musa acuminata L.; AAA Group cv. Brazil), banana cv. ‘Nongke No.1’ (M. acuminata L.; AAA Group cv. Nongke No.1), and banana cv. ‘Yueyoukang I’ (M. acuminata L.; AAA Group cv. Yueyoukang I). ‘Brazil’ is susceptible to F. oxysporum, whereas ‘Nongke No.1’ and ‘Yueyoukang I’ are moderately and highly resistant to this pathogen, respectively. Tropical Race 4 strain of F. oxysporum f. sp. cubense (Foc4) has been under long-term preservation in our laboratory. All cultivars were tissue cultured as described by Ganapathi et al. [79]. Banana plantlets were inoculated using the method of Berg et al. [20] with some modifications. Propagated banana plantlets were transferred into 85 mm diameter tissue boxes containing sterile peat soil. The plantlets were incubated in a greenhouse at 21°C to 28°C with a photoperiod of 12 h:12 h light:dark. When the plantlets reached the four-leaf stage, washed roots of the plantlets were wounded by gentle crushing prior to inoculation with the pathogen. Then, roots and rhizomes were dipped into a 500 mL sterile beaker containing 200 mL tropical race 4 spore suspension (106 conidia/mL of each isolate) and then incubated for 30 min. The control plants were treated with sterile distilled water in the trial. Each sample set-up was done in triplicates. Each treated plant was subsequently planted singly in a 200 mL plastic cup with steam-sterilized soil, placed on iron trays, and then kept in a humidity chamber in a greenhouse (28 ± 1°C and a natural photoperiod of 12 h:12 h light/dark). Root samples were collected at the point of 3D after Foc4 or H2O treatment. The samples were flash frozen in liquid nitrogen and stored at −80°C.

Protein extraction

Proteins were extracted and separated from the samples according to the protocol of Isaacson et al. [80]. Briefly, mortar and pestle were chilled with liquid nitrogen before grinding, and 1 g of root tissue was frozen in liquid nitrogen. Samples were ground to fine power with a pestle in liquid nitrogen and then suspended in 10 mL extraction buffer (0.7 M sucrose, 0.1 M KCl, 0.5 M Tris–HCl, 50 mM EDTA and 0.2% DTT, pH 7.5). Total proteins were precipitated overnight at −20°C. Subsequently, the mixtures were centrifuged at 5,000 g for 30 min at 4°C. The sediment pellets were washed three or five times with 10 mL of ice-cold methanol containing 0.2% DTT. The collected pellets were air-dried at 4°C and then re-suspended in lysis buffer [7 M urea, 2 M thiourea, 1% CHAPS, 2% ampholytes (pH 4 to 7), 1% DTT]. Finally, the mixtures were centrifuged at 16,000 g for 10 min at 4°C, and protein supernatants were transferred to new tubes. The protein concentrations were estimated using the Bradford assay [81].

2-DE and gel staining

The lysed samples were diluted with rehydration buffer (7 M urea, 2 M thiourea, 4% CHAPS, 0.002% bromophenol blue, 0.5% IPG buffer, 75 mM DTT) to 380 μL protein supernatant containing 550 μg protein. Subsequently, 18 cm IPG strips (pI 4 to 7, GE Healthcare) were rehydrated for at least 12 h in diluted protein. Ettan IPGphor II (GE Healthcare) was used to perform IEF at 20°C with a current limit of 50 mA per strip. The program was set as follows: 12 h at 50 V, 2 h at 500 V, 2 h at 1000 V, 7 h at 8000 V (gradient), and 50000 Vh at 8000 V. After isoelectrical focus of proteins was completed, each strip was individually equilibrated for 15 min in 8 mL equilibration solution (6 M urea, 30% glycerol, 2% SDS, 0.002% bromophenol blue, 50 mM Tris, pH 8.8) containing 1% DTT and then for 15 min in 8 mL equilibration buffer containing 2.5% iodoacetamide. Second-dimension separation was carried out on an Ettan DALT 6 System (GE Healthcare) using 12% SDS polyacrylamide gels. Protein spots of gels were visualized by CBB G-250 staining [82]. Three replicate gels were run for each sample.

Image analysis

The stained gels were scanned with ImageScanner (GE Healthcare), and the images were statistically analyzed using PDQuest software (Version 8.0, Bio-Rad, Hercules, CA, USA). The protein expression profiles of control tissues were used as a reference. Then, the matched spots were analyzed manually, and falsely matched or unmatched spots were corrected. Percentage spot volumes were calculated using Student’s t-test, and spots with twofold abundance changes were selected as significant differential proteins.

Protein digestion

The differential protein spots were excised from the gel. Tryptic digestion of the selected spots was carried out as described by Guo et al. [83] with some modifications. Briefly, each excised spot was de-stained with 100 mM NH4HCO3 in 30% ACN. The gel pieces were minced, lyophilized, and then rehydrated in trypsin containing NH4HCO3 at 37°C overnight. After digestion, the peptides were collected, and the pellets were washed with 0.1% TFA in 60% (v/v) ACN three times to dry the remaining peptides.

MALDI-TOF/TOF MS analysis and database searching

The differential proteins were identified by MALDI-TOF-TOF as described previously [84]. The MS and MS/MS spectra were acquired using an ABI 4700 Proteomics Analyzer (Applied Biosystems, Foster City, CA, USA). Data search files were generated by GPS-Explorer Software 3.6 (Applied Biosystems), and then sequence similarity searches in the M. acuminate protein database (, MASCOT NCBInr database ( and Plant_EST database were performed with MultiAgent Supply Chain cOordination Tool (MASCOT) search engine 2.2 (Matrix Science, United Kingdom) with default parameters based on peptide mass fingerprinting PMF and MS/MS spectra.

Quantitative RT-PCR analysis

RNA samples were extracted from banana roots using E.Z.N.A.TM plant RNA mini Kit (Omega, USA). 0.5 μg total RNA as template was reverse transcription as first-strand cDNA using iscriptTM advanced cDNA Synthesis Kit (Bio-Rad) according to the manufacturer’s instructions. Quantitative real time PCR was performed using the ssoFastTM evagreen supermix(Bio-Rad) on a Takara Thermal Cycler Device for Real-Time System(Takara). Primers listed in Table 1 are designed based on M. acuminate database. And α-tublin have been traditionally used as the endogenous reference gene [85]. 20 μl PCR reactions consisted of 10 μl ssoFast evagreen supermix, 2 μl template (10 × diluted cDNA), and 20μm of each primer (forward and reverse). Each reaction was incubated in PCR Strip Tubes at 95°C for 30 s, followed by 40 cycles of 95°C for 5 s, 58°C for 30 s. Three independent biological replicates were run for each sample. For each biological replicate, three technical replicates were used for qRT-PCR analyses.

Table 1 Primer sequences used for qRT-PCR



Fusarium oxysporum f. sp. cubense tropical race 4



F. oxysporum:

Fusarium oxysporum f. sp. cubense (E.F. Smith) Snyder and Hansen


Pathogen-associated molecular pattern


Pathogen-associated molecular pattern (PAMP)-triggered immunity


Pattern-recognition Receptors


Reactive oxygen species


Effector-triggered immunity


Salicylic acid


Jasmonic acid




Abscisic acid


Two-dimensional electrophoresis


Isoelectric point


Coomassie Brilliant Blue


Matrix-assisted laser desorption/ionization time-of-flight/time-of-flight


Quantitative real time PCR method


Expressed sequence tags


Systemic acquired resistance


Caffeoyl-CoA O-methyltransferase


Isoflavone reductase


Leucoanthocyanidin dioxygenases


S-adenosylmethionine synthase


Alpha-1, 4-glucan-protein synthase


Germin-like protein 12–1


Protein IN2-1


L-ascorbate peroxidase


Glutathione S-transferase GSTF1


Superoxide dismutase [Mn]


Abscisic stress-ripening protein 3


Abscisic stress ripening protein


Auxin-induced protein PCNT115

HSP 22:

Heat Shock 22 kDa protein


T-complex protein 1 subunit gamma


Protein disulfide-isomerase


Late embryogenesis abundant protein


Glutamine synthetase nodule isozyme


Putative carboxyvinyl-carboxyphosphonate phosphorylmutase


NADP-dependent malic enzyme






Malate dehydrogenase


Tricarboxylic acid
