In-silico identification of phenotype-biased functional modules

  • Kanchana Padmanabhan1, 2,
  • Kevin Wilson5,
  • Andrea M Rocha3,
  • Kuangyu Wang4,
  • James R Mihelcic3 and
  • Nagiza F Samatova1, 2Email author
Proteome Science201210(Suppl 1):S2

https://doi.org/10.1186/1477-5956-10-S1-S2

Published: 21 June 2012

Abstract

Background

Phenotypes exhibited by microorganisms can be useful for several purposes, e.g., ethanol as an alternate fuel. Sometimes, the target phenotype maybe required in combination with other phenotypes, in order to be useful, for e.g., an industrial process may require that the organism survive in an anaerobic, alcohol rich environment and be able to feed on both hexose and pentose sugars to produce ethanol. This combination of traits may not be available in any existing organism or if they do exist, the mechanisms involved in the phenotype-expression may not be efficient enough to be useful. Thus, it may be required to genetically modify microorganisms. However, before any genetic modification can take place, it is important to identify the underlying cellular subsystems responsible for the expression of the target phenotype.

Results

In this paper, we develop a method to identify statistically significant and phenotypically-biased functional modules. The method can compare the organismal network information from hundreds of phenotype expressing and phenotype non-expressing organisms to identify cellular subsystems that are more prone to occur in phenotype-expressing organisms than in phenotype non-expressing organisms. We have provided literature evidence that the phenotype-biased modules identified for phenotypes such as hydrogen production (dark and light fermentation), respiration, gram-positive, gram-negative and motility, are indeed phenotype-related.

Conclusion

Thus we have proposed a methodology to identify phenotype-biased cellular subsystems. We have shown the effectiveness of our methodology by applying it to several target phenotypes. The code and all supplemental files can be downloaded from (http://freescience.org/cs/phenotype-biased-biclusters/).

Background

Phenotypes that certain microorganisms express includes breaking down the lignocellulosic barrier of biomass, biodegradation of various environmental contaminants etc. Tackling problems in the areas of biore-mediation and bioenergy with the help of genetic engineering requires as a first step identifying the cellular subsystems that are involved in the phenotype-expression by an organism. The phenotype-related cellular subsystems may be detected using laboratory experimentation. However, to supplement experimentation methods, computational methodologies need to be used.

Biological relationships (e.g., protein functional associations) between proteins are often modeled as networks (functional association networks from STRING [1]), where each node is a protein and every pair of functionally associated proteins is connected with an edge. Functional association between proteins is derived from a number of clues like experimental data, gene-fusion, co-occurrence of the corresponding genes on the same operon, etc. The subgraphs of these networks can model the cellular subsystems.

Evolutionary conservation of cellular subsystems can be used as one clue to identify the phenotype-related cellular subsystems [2]. The cellular systems associated with a phenotype are more likely to be present across phenotype-expressing organisms and are less likely to be present across phenotype non-expressing organisms [2]. This strategy can be utilized to identify cellular subsystems that are likely phenotype-related.

An earlier work by Schmidt et al [2] focused on identifying phenotype-related functional modules that were modeled as cliques. Functional modules that have a clique structure require that every pair of proteins in the module has an edge between them. The density of the subgraph modeled as a clique is 1. Density is the ratio of the number of edges in the subgraph to the total number of possible edges in the subgraph. This method was one of the first to identify phenotype-related subgraphs. However, their subgraph identification condition is too stringent to model all biological functional modules. This is primarily because biological networks are prone to missing information (like missing edges) [3]. Paccanarot et al [4] explain that most of the errors in the networks are false-negatives, i.e., edges that were not predicted. Hence, Schmidt et al [2] method may not identify the complete phenotype-related cellular subsystems. They acknowledge this as a drawback and use the identified cliques as input into another algorithm called DENSE [5], that can extract extended subsystems from a single organismal network. These subsystems may or may not be related towards the target phenotype.

Additionally, Schmidt et al [2] method requires two inputs: the parameter α-the least number of phenotype-expressing organisms the identified clique has to be present in and the parameter β-the number of phenotype non-expressing organisms the identified clique can be present in. These parameters may be hard to estimate beforehand and, hence, multiple runs with different parameter values may be required.

Spirin et al [6] showed that significantly dense "non-clique" clusters formed biologically relevant functional modules. They provide an example of a functional module associated with cell-cycle regulation consisting of cyclins (CLB1-4 and CLN2), cyclin-dependent kinases (CKS1 and CDC28), and a nuclear import protein NIP29 identified from Saccharomyces cerevisiae network that is not a clique. Hwang et al [7] showed that maximal clique enumeration methods discard over 90% of network nodes when applied to the PPI network of Saccharomyces cerevisiae. Hendrix et al [5] identified "non-clique" functional modules that were verified by literature. Habibi et al [8] showed that protein complexes that are usually thought to be cliques could also have different topologies (MIPS ID: 510.40.10 and 550.1.213 complexes) and this could primarily be due to the fact that biological data sources contain noise and possibly do not contain the entire information due to limitations of experiments. Additionally, their detailed study of the densities of the existing protein complexes from various sources [913] has revealed that many complexes have density less than 0.1.

In this paper, we propose a methodology (Figure 1 and Figure 2) to identify the statistically significant functional modules that are phenotype-biased. Phenotype-biased means that it is more conserved across phenotype-expressing organisms and less conserved across phenotype non-expressing organisms. The functional modules are identified by a comparative analysis using both phenotype-expressing and phenotype non-expressing organisms. The structure of the functional modules is a subgraph that is a connected component which is then filtered to identify the statistically significant components. The method does not require parameters similar to the parameters α and β, in [2] to decide the number of organisms the resulting subsystem should be present in.
Figure 1

Building the orthologous group-pair, organism bipartite network.

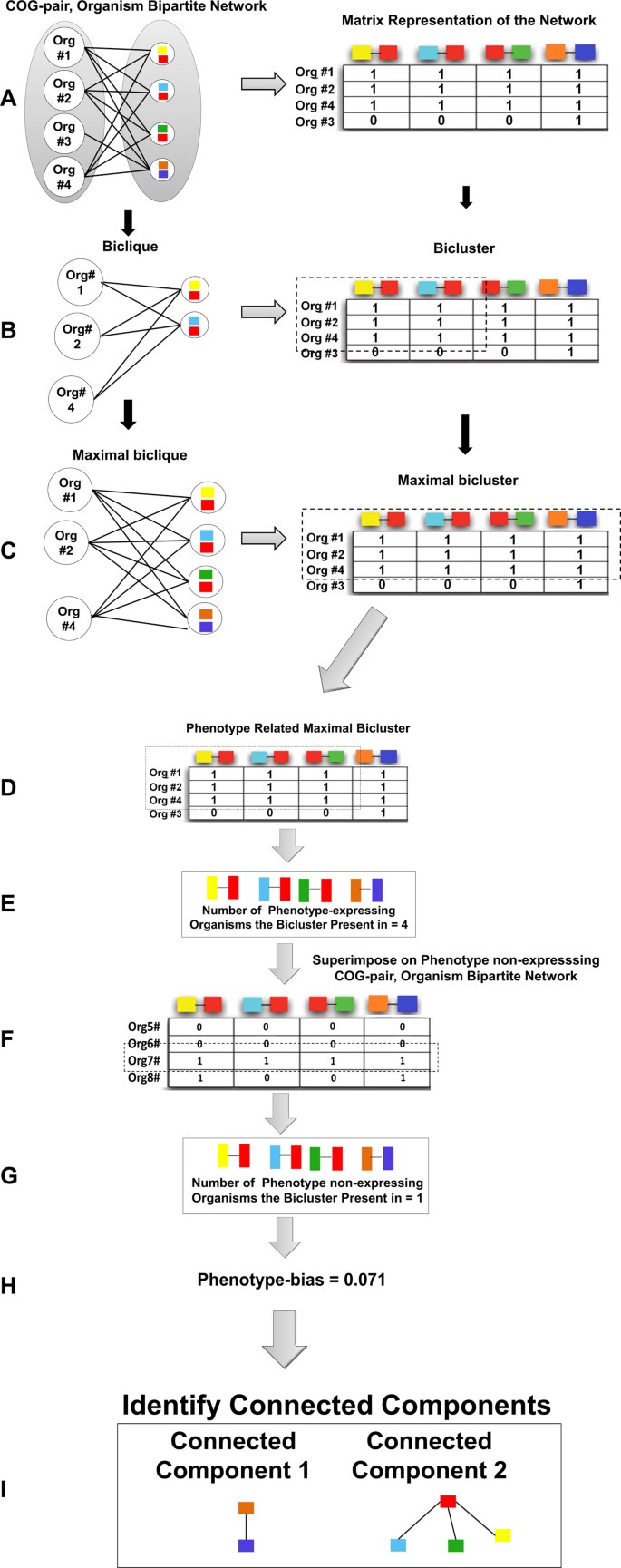

Figure 2

Methodology overview to identify phenotype-biased functional modules.

In our earlier conference paper [14], we identified the biclusters common to a set of phenotype expressing organisms and analyzed these biclusters for potential cross-talking pathways. In this paper, we extend the methodology to utilize phenotype non-expressing organismal information to identify phenotype-biased functional modules. This increases the confidence in the phenotype-relatedness of the identified modules. The phenotype-bias is quantified using the hypergeometric statistical test. In [14], we performed the analysis only for the hydrogen production phenotype. Here, we have also analyzed respiration, gram-positivity, gram-negativity and motility phenotypes.

Results

Experimental setup

We set up experiments with four different phenotypes, hydrogen production (dark and light fermentation), respiration, gram-stain, and motility. The organisms for each phenotype were identified using literature search [15, 16]. The functional association network for each organism was obtained from the STRING [1] database and the edge score cutoff used was 700 (termed as high confidence [1]).

Hydrogen production

Biological hydrogen production is being looked at as a source of alternate energy and there are plenty of microorganisms that can utilize different organic substrates to produce hydrogen. This makes it a useful alternate energy option to explore [1719]. Identifying cellular subsystems related to hydrogen production will be extremely useful to genetic engineers looking to make the process of biological hydrogen production more efficient. The light and dark fermentation are two important sub-phenotypes of hydrogen production and experiments based on these phenotypes have been discussed in this section.

Light fermentation

Initial review of the light fermentation clusters shows the presence of a set of 13 identical COGs found across all 8 COG clusters. These "core" COGs include genes necessary for synthesis of hydrogenase complex(es).

Nitrogen-fixation is the process, in which nitrogenase catalyzes the conversion of nitrogen gas to ammonia and inadvertently results in the production of hydrogen gas as a byproduct [20, 21]. Two COGs (COG2710 and COG1348), which are associated with the expression of two key proteins, nitrogenase iron protein (NifH) and molybdenum iron protein [20], were present across all the clusters. Although, the presence of these two proteins is essential for nitrogen-fixation to be carried out by light fermenting microorganisms, expression of various genes in other metabolic pathways plays important roles in either directly or indirectly regulating the expression of genes encoding NifH proteins. These proteins include ferric iron regulation proteins (sigK, clpB, and fur-related), ammonia ligase (glnA), and nitrogenase [22]. In this study, glutamate ammonia ligase (glnA), a key gene for nitrogenase (NifH), and genes encoding proteins for iron uptake, are assembled in the same cluster. In Anabaena, iron uptake proteins and some nitrogen proteins (e.g., Ntc) have been shown to regulate genes encoding glutamate synthetase (glnA) [23]. Review of the role of glutamine synthetase in Anabaena indicates that this enzyme is responsible for regulating nitrogenase activity, thus impacting hydrogen production [23]. The indirect regulation of nitrogenase by iron uptake proteins provides an example of cross-talk between iron and nitrogen-related metabolic pathways.

In addition to nitrogenase, proteins associated with the synthesis of uptake or expression of hydrogenase, were identified in 11 of the 19 COGs present in Table 1. Hydrogen uptake proteins help with removing excess hydrogen to maintain the reducing environment in cells [24]. We also identified a number of proteins (e.g., Hyd and Hyp) involved in formation of [NiFe]-uptake hydrogenases. The presence of maturation hydrogenase factors (COG0068, COG0298, COG0309) and accessory proteins for uptake of nickel (COG0378) are consistent with literature reports describing the structure of hydrogenase complexes. Inclusion of hy-drogenase proteins in Table 1 is likely due to the relationship of hydrogenase proteins with iron uptake genes. To function properly, iron is needed to form the NiFe center present in the large hydrogenase subunit (HupL) [25]. As such, hydrogenase maturation is dependent on cross-talks with iron uptake.
Table 1

COGs associated with light fermentation identified by the method

COG ID

COG Description

COG0068

Hydrogenase maturation factor

COG0298

Hydrogenase maturation factor

COG0309

Hydrogenase maturation factor

COG0374

Ni,Fe-hydrogenase I large subunit

COG0375

Zn finger protein HypA/HybF(possibly regulating hydrogenase expression)

COG0378

Ni2+-binding GTPase involved in regulationof expression and maturation of urease and hydrogenase1

COG0409

Hydrogenase maturation factor

COG0680

Ni,Fe-hydrogenase maturation factor

COG1740

Ni,Fe-hydrogenase I small subunit

COG0174

Glutamine synthetase

COG0535

Predicted Fe-S oxidoreductases

COG0716

Flavodoxins

COG1348

Nitrogenase subunit NifH (ATPase)

COG2082

Precorrin isomerase

COG2710

Nitrogenase molybdenum-iron protein,alpha and beta chains

COG2370

Hydrogenase/urease accessory protein

COG1941

Coenzyme F420-reducing hydrogenase, gamma subunit

COG3259

Coenzyme F420-reducing hydrogenase, alpha subunit

COG0735

Fe2+Zn2+ uptake regulation proteins

In previous studies by Lopez-Gollomon [23], the nitrogen regulator protein NtcA was found to work together with the iron-uptake protein, Fur, to co-regulate genes involved in various metabolic functions. Metabolic functions co-regulated include the transcriptional regulation protein and glutamine synthesis [26]. In this study, genes encoding iron uptake regulator proteins (COG0735) were clustered together with genes encoding glutamine synthetase (COG0174). The co-appearance of these two COGs suggests the possible cross-talk between iron uptake and ammonia assimilation networks. In addition, there is indication that hydrogenase proteins, such as HupUV, are involved in regulating the glutamine synthetase gene, glnAII, in some organisms [20, 27].

Dark fermentation

Unlike light fermentation, we did not observe a large set of COGs present across all clusters. For this set of organisms, only two COGs were identified as present across all clusters. This may be partially due to the following two reasons. First, the selection of species and species diversity have some impact on the types of clusters generated. Second, dark fermentation organisms tend to utilize a greater variety of fermentation pathways, such as acetate fermentation and butyrate fermentation pathways [28]. Greater variation in fermentation routes will not produce as large of a "core" set of COGs across all clusters.

An example of COG clusters identified in dark fermentative bacteria is present in Table 2. In this cluster, 13 different COGs consisting of proteins that are either directly or indirectly responsible for the uptake or production of hydrogen, are present. Of these COGs, 7 are related to the synthesis or expression of [NiFe]-hydrogenase, an enzyme that catalyses the reversible oxidation of molecular hydrogen, and plays a vital role in anaerobic metabolism [27]; the others are involved in nitrogen and iron metabolic pathways that include proteins like nitrogenase, iron uptake proteins, such as Fur (COG0735), ammonia assimilation proteins, such as glutamine synthetase (COG3968), and proteins involved in electron transfer. Previous findings by Butland et al. [29] show that the presence of proteins (e.g., HypE, HypD, HupS, HupD) is typically associated with hydrogen uptake [25, 30]. Based on the other genes (e.g., hybG, hupS) present in the cluster, we can predict that [NiFe]-hydrogenase is associated with hydrogen uptake in this group of organisms.
Table 2

COGs associated with dark fermentation identified by the method

COG ID

COG Description

COG0298

Hydrogenase maturation factor

COG0309

Hydrogenase maturation factor

COG0374

Ni,Fe-hydrogenase I large subunit

COG0409

Hydrogenase maturation factor

COG0680

Ni,Fe-hydrogenase maturation factor

COG1740

Ni,Fe-hydrogenase I small subunit

COG0535

Predicted Fe-S oxidoreductases

COG1348

Nitrogenase subunit NifH (ATPase)

COG2710

Nitrogenase molybdenum-iron protein, alpha and beta chains

COG0716

Flavodoxins

COG0735

Fe2+/Zn2+ uptake regulation proteins

COG2082

Precorrin isomerase

COG3968

Uncharacterized protein related to glutamine synthetase

In addition to hydrogenase maturation and expression proteins, Fe-S oxidoreductases were identified. As part of the structure of [NiFe]-hydrogenase, Fe-S metal centers are located on the small subunit of the hydrogenase complex [25, 27]. Thus, it is expected that iron uptake pathway would cross-talk with hydrogenase-related pathways. Furthermore, the iron uptake pathway also cross-talks with nitrogen metabolism, in a sense that iron uptake proteins can be involved indirectly in nitrogen metabolism through regulation of nitrogenase and maintaining the reducing environment in the cell through hydrogen uptake (hydrogenase) [26, 31].

It has been shown that cross-talk between iron uptake and nitrogen metabolism enables regulation of ammonia assimilation [21]; it may be possible that the uncharacterized glutamine synthetase protein in Table 2 is subject to such regulation. In our results, the gene encoding the uncharacterized glutamine synthetase proteins was only present in a few species, including Clostridium acetobutylicum and Clostridium beijerinckii, which both contained nitrogenase and hydrogenase enzymes. It has been demonstrated that, in light fermenting organisms, such as Rhodopseudomonas palustris, glutamine synthetase is regulated by hydrogenase accessory proteins (HupUV) [21]. However, to the best of our knowledge, this relationship has not been described in dark fermentation organisms. This knowledge increases the probability that the uncharacterized glutamine synthetase protein maybe present in the COG cluster oweing to its association with nitrogenase proteins, which may further indicate a possible cross-talk between ammonia assimilation and nitrogen metabolism.

Motility

The motility experiment was set up with a set of 85 motile and 56 non-motile organisms chosen from Slonim et al [16]. The method identified clusters that contained COG1360, COG1558, COG1157, COG1684, and COG1536 (Table 3). All these COGS are related to flagella proteins. The flagella proteins are those that enable the organisms to move. The method also found COG0643, COG0835, and COG0784 that are related to bacterial chemotaxis. It is well known that chemotaxis controls an organism's movement with respect to the chemical composition of its environment. For example, it helps the organism moves to the areas where there is very high concentration of food [32].
Table 3

COGs associated with motility identified by the method

COG ID

COG Description

COG1843

Flagellar hook capping protein

COG1291

Flagellar motor component

COG1344

Flagellin and related hook-associated proteins

COG1256

Flagellar hook-associated protein

COG1338

Flagellar biosynthesis pathway, component FliP

COG4786

Flagellar basal body rod protein

COG1360

Flagellar motor protein

COG1558

Flagellar basal body rod protein

COG1157

Flagellar biosynthesis,type III secretory pathway ATPase

COG1684

Flagellar biosynthesis pathway, component FliR

COG1536

Flagellar motor switch protein

COG1766

Flagellar biosynthesis/type III secretory pathway lipoprotein

COG1684

Flagellar biosynthesis pathway,component FliR

COG1987

Flagellar biosynthesis pathway,component FliQ

COG1338

Flagellar biosynthesis pathway, component FliP

COG1886

Flagellar motor switch/type III secretory pathway protein

COG0643

Chemotaxis protein histidine kinaseand related kinases

COG0835

Chemotaxis signal transduction protein

COG0784

FOG: CheY-like receiver

COG0643

Chemotaxis protein histidine kinase and related kinases

COG1508

DNA-directed RNA polymerase specialized sigma subunit, sigma54 homolog

COG1191

DNA-directed RNA polymerase specialized sigma subunit

COGS related to the Type III secretion system (COG1766, COG1684, COG1987, COG1338, and COG1886) were also identified. It has been shown that Type III secretion proteins share similarities with flagella proteins in structure and function [33]. Additionally, we identified COG0835, COG0643, COG1344, COG1291,COG0784, COG1508, and COG1191 associated with the two-component systems. This is a signaling pathway that regulates motility [34].

Respiration

This experiment was set up with a set of 77 aerobic organisms and 57 anaerobic organisms. For aerobic respiration, COGs related to the enzymes present in the TCA cycle were identified. They are COGs related to citrate synthase (COG0372), acitonase (COG1048), and Malate dehydrogenases (COG0039) (Table 4). Some COGs such as the malate synthase (COG2225), isocitrate synthase (COG2224), glyoxylate bypass were also found. The entire list of TCA-related COGs identified can be found in Table 4. There were also other literature verified COGs (COG0843, COG0109,COG1048, COG1622, COG1845, and COG0372) found by the method described in [35].
Table 4

COGs associated with aerobic respiration identified by the method

COG ID

COG Description

COG0372

Citrate synthase

COG1048

Aconitase A

COG0045

Succinyl-CoA synthetase, beta subunit

COG0074

Succinyl-CoA synthetase, alpha subunit

COG0479

Succinate dehydrogenase/fumarate reductase,Fe-S protein subunit

COG1053

Succinate dehydrogenase/fumarate reductase,flavoprotein subunit

COG2142

Succinate dehydrogenase,hydrophobic anchor subunit

COG0039

Malate/lactate dehydrogenases

COG2224

Isocitrate lyase

COG2225

Malate synthase

COG2084

3-hydroxyisobutyrate dehydrogenaseand related beta-hydroxyacid dehydrogenases

COG2379

Putative glycerate kinase

For anaerobic experiment, we found COG1924, COG1592, COG2221, and COG2033. The COG1924 is related to oxygen sensitive proteins [36] (Table 5). The other COGs were pulled out computationally by another genotype-phenotype methods [35, 36] applied to the anaerobic phenotype. We also identified COGs from the Arginine and proline metabolism, the reason for this could be attributed to the L-argnine which could serve as an energy source for anaerobes.
Table 5

COGs associated with anaerobic respiration identified by the method

COG ID

COG Description

COG1924

Activator of 2-hydroxyglutaryl-CoA dehydratase(HSP70-class ATPase domain)

COG1592

Rubrerythrin

COG2221

Dissimilatory sulfite reductase(desulfoviridin), alpha and beta subunits

COG2033

Desulfoferrodoxin

Gram-positive and gram-negative

This experiment was set up with a set of 61 gram positive bacteria and 109 gram negative bacteria. For gram negativity, COG2877, COG2885, COG1044, COG1519, COG0763, and others related to the Lipopolysaccha-ride biosynthesis were found (Table 6). This pathway has been shown to be related to gram-negativity [33]. Another set consisting of COG0043, COG0163, COG2227, COG1008, and COG1005 were found. These are associated with the ubiquinone pathway that is also shown to be associated with gram-negativity [33]. The COG0848 found by the method has been shown to be associated with the target phenotype [37].
Table 6

COGs associated with gram negativity identified by the method

COG ID

COG Description

COG2877

3-deoxy-D-manno-octulosonic acid(KDO) 8-phosphate synthase

COG2885

Outer membrane protein andrelated peptidoglycan-associated (lipo)proteins

COG1044

UDP-3-O-[3-hydroxymyristoyl]glucosamine N-acyltransferase

COG1519

3-deoxy-D-manno-octulosonic-acid transferase

COG0763

Lipid A disaccharide synthetase

COG0838

NADH:ubiquinone oxidoreductase subunit 3 (chain A)

COG0337

3-dehydroquinate synthetase

COG0852

NADH:ubiquinone oxidoreductase 27 kD subunit

COG1143

Formate hydrogenlyase subunit 6/NADH:ubiquinone oxidoreductase 23 kD subunit (chain I)

COG0713

NADH:ubiquinone oxidoreductase subunit 11 or 4L (chain K)

COG0649

NADH:ubiquinone oxidoreductase 49 kD subunit 7

COG0382

4-hydroxybenzoate polyprenyltransferaseand related prenyltransferases

COG0043

3-polyprenyl-4-hydroxybenzoate decarboxylaseand related decarboxylases

COG0163

3-polyprenyl-4-hydroxybenzoate decarboxylase

COG2227

2-polyprenyl-3-methyl-5-hydroxy-6-metoxy-1,4-benzoquinol methylase

COG1008

NADH:ubiquinone oxidoreductase subunit 4 (chain M)

COG1005

NADH:ubiquinone oxidoreductase subunit 1 (chain H)

COG1663

Tetraacyldisaccharide-1-P 4'-kinase

COG0774

UDP-3-O-acyl-N-acetylglucosamine deacetylase

COG1212

CMP-2-keto-3-deoxyoctulosonic acid synthetase

COG0859

ADP-heptose:LPS heptosyltransferase

COG2908

Uncharacterized protein conserved in bacteria

COG2870

ADP-heptose synthase, bifunctionalsugar kinase/adenylyltransferase

COG3307

Lipid A core - O-antigen ligase and related enzymes

COG0445

NAD/FAD-utilizing enzymeapparently involved in cell division

COG0848

Biopolymer transport protein

From gram-positive bacteria (Table 7), the method identified COG3764 and COG3773. COG3674 relates to plasma membrane proteins and was identified by previous research as related to gram-positivity [37]. The COG3773 is associated with endospore formation that usually occurs in gram-positive bacteria when there is a lack of nutrients. We also found COG0619 and COG1122 as single connected component; these COGs are associated with uptake of MET/or MET-precursors, which are associated with regulation of genes involved in amino acid metabolism in gram-positive bacteria [38].
Table 7

COGs associated with gram positivity identified by the method

COG ID

COG Description

COG3764

Sortase

COG3773

Cell wall hydrolyses involved in spore germination

COG0619

ABC-type cobalt transport system, permease component CbiQ and related transporters

COG1122

ABC-type cobalt transport system, ATPase component

Discussion

In summary, the proposed methodology identifies the phenotype-biased cellular subsystems. The results of the method provide clues on which subsystems are co-present to help in phenotype expression. This information could potentially be put to use by genetic engineers. However, there are three points that should be pondered over.

There are several points that are worth bringing out especially when analyzing network data of both phenotype-expressing and phenotype non-expressing organisms. The first point is on the importance of phylogenetic diversity of the underlying organisms. Our results depend on the organisms chosen for the experiment. There could be cases where the conserved biclusters were identified purely due to the fact that the chosen organisms were phylogentically close. Thus, as part of future work we will look into incorporating some scoring mechanism, such that the identified phenotype-biased biclusters are also conserved across a set of phylogenetically diverse set of organisms.

The second point of discussion stems from the fact the same organism can express multiple phenotypes. Currently we look at only one phenotype at a time. The current methods that analyze multiple phenotypes at the same time [33] do so by looking at one phenotype at a time and by correlating the results of the different experiments. Analyzing multiple (possibly related) phenotypes together might provide new insights into pathway cross-talking mechanisms. Another direction of future work is to extend our method to work with multiple phenotypes.

The third point of discussion stems from the fact that a phenotype may have several subphenotypes. For example, all hydrogen producing organisms do not express the phenotype in the same manner. Hydrogen production has three subphenotypes dark fermentation, light fermentation and biophotolysis, two of those were discussed in this paper. Thus, when methods seek to identify phenotype-related systems using multiple organism data, it is imperative to identify systems present in any subset of organisms as opposed to all the organisms. The subsystem present in a subset (as opposed to all) may be a specific path (subphenotypes) to carry out the phenotype. Our methodology models that intuition by using the bicluster definition for the functional module, thus naturally allowing the identified cluster to be present in any organism subset (of size ≥ 2).

Conclusion

We have developed a method to identify phenotype-biased functional modules by utilizing both phenotype-expressing and phenotype non-expressing organismal network data. By applying our method to four phenotypes, hydrogen production, gram stain, motility and respiration, we were able to identify functional modules that were associated with the target phenotypes. The findings were validated via literature evidence.

Methods

Orthologous group-pair, organism bipartite network

In order to identify functional modules across a given set of organismal protein functional association networks, we need a representation that would help us enumerate these modules efficiently. The organismal protein functional association network is obtained from STRING database [39], each node is a protein and a pair of proteins are connected by an edge if there is some evidence of their functional association. Some examples of the evidences considered in STRING are gene fusion, co-occurrence on the same operon, co-expression etc. In this paper we propose the orthologous group-pair, organism bipartite network that combines the information present in all of the individual organismal protein functional association networks into one single network (Figure 1).

As a first step to constructing this network, we need some kind of transformation that would help us understand the commonalty and differences among the networks. One such transformation is replacing all proteins in all of the organismal networks with their corresponding orthologous group IDs (Figure 1.2). The most common representation used in biology is the manually curated Clusters of Orthologous Groups (COGs) [40].

In the second step, we construct two sets, O and C (Figure 1.3). In C, each element is a pair (x, y), where both x and y are COGs. In O, each element represents an organism. These two sets become the two partites of the graph.

As a final step, we construct the orthologous group-pair, organism bipartite network (Figure 1.3), N = (O, C, E). An edge (a, b) E, where a O and b = (u, v) C exists if and only if the COG pair (u, v) is functionally associated in organism a, i.e., in the organismal protein functional association network A = (V(A), E(A)) corresponding to organism a, x, y V(A) : x and y belong to orthologous cluster groups u and v, respectively, and (x, y) E(A). Since in this paper we make use of COGs, the network N will henceforth be referred to as the COG-pair, organism bipartite network.

Network representation and preprocessing

The COG-pair, organism bipartite network, N is represented using an adjacency matrix for the purpose of identifying the conserved functional modules (Figure 1.4). The organisms are the row-headers and each column header is a COG-pair. A matrix cell has a 1, if the corresponding organism (row-header) and the COG pair (column-header) are connected by an edge in network N. This matrix is typically sparse.

Obtaining the conserved COG clusters

As a first step to identifying the modules, we identify sets of COG edges that are conserved across two or more organisms. These sets can be represented as bicliques (Figure 2.B) in the COG-pair, organism bipartite network. To avoid enumerating the same information more than once, we only enumerate the maximal bicliques (Figure 2.C).

Definition 0.1 Given a bipartite graph N = (O, C, E), a subgraph S = (O', C', E') of N is a biclique if a O' and b C', (a, b) E'.

Definition 0.2 A biclique S of N is also maximal if there is no supergraph S' of S that forms a biclique in N.

The problem of identifying maximal bicliques using the binary matrix representation translates to identifying the maximal biclusters (Figure 2.B) in the matrix. Although any biclustering technique that works on binary matrices would suffice, we chose Prelic et al.'s Bimax biclustering algorithm [41]. There are two reasons for this choice: (1) Bimax performs on par with the best biclustering techniques [41], and (2) It has also been shown that Bimax is able to output all the optimal (maximal) biclusters in the given binary matrix [41]. The algorithm uses a divide-and-conquer approach to enumerate maximal bicliques (maximal biclusters) in the COG-pair, organism bipartite network (Figure 2.C).

Comparative analysis using phenotype non-expressing organisms

So far, we have hypothesized that biclusters conserved across 2 or more phenotype-expressing organisms are likely phenotype related. We strengthen the notion of phenotype-related to phenotype-biased by performing comparative analysis using a set of both phenotype-expressing and phenotype non-expressing organisms. Phenotype-biased biclusters are likely to be conserved more across a set of phenotype expressing organisms and less across a set of phenotype non-expressing organisms.

Figure 2.D-G shows the steps in the comparative analysis pipeline. The analysis begins with a set of biclusters identified in Figure 2.C. The orthologous group-pair, organism bipartite network is built for the set of phenotype non-expressing organisms. This network is then converted into its matrix representation (phenotype non-expression matrix). Each phenotype-related bicluster, identified previously, is now analyzed in the context of the phenotype non-expression matrix. We seek to identify the number of phenotype non-expressing organisms the bicluster is conserved in. This information can be utilized to calculate the phenotype-bias of this bicluster.

The phenotype-bias is quantified by using the hypergeometric statistical test. Let P be the total number of organisms (both phenotype-expressing and phenotype non-expressing). Let S be the total number of phenotype expressing organisms. Let X be total number of organisms (both phenotype-expressing and phenotype non-expressing) the bicluster B is present in. Let Y be the number of phenotype-expressing organisms the bicluster B is present in. The bias (p-value) of the bicluster B is calculated as follows:
b i a s ( B ) = ( Y S ) * ( X Y P S ) ( X P )
(1)

We apply a p-value cutoff of 0.05 to identify all the phenotype-biased biclusters.

Enumerating the connected components

Each phenotype-biased maximal bicluster identified in the previous section represents the set of COG-COG edges conserved across the set of phenotype-expressing organisms. However, we cannot consider the COG-COG edge set as a functional module as is. A functional module has to be a connected subgraph of an organismal network as opposed to a collection of edges. A connected component subgraph is one where there is path between every pair of nodes in the subgraph. However, there is no guarantee that all the COG-COG edges in the bicluster are connected. Thus, all the connected component subgraphs from the COG-COG edge set of each bicluster are enumerated (Figure 2.I).

Assessing statistical significance

The results of the previous section only guarantee that the subgraphs output are connected components but there is no clear indication whether the subgraphs could potentially represent functional modules or if their occurrence was purely random. One way to check this would be to compare the density of each component with the density that could be obtained at random for a subgraph with the same number of nodes.

The Monte Carlo method [42, 43], a robust statistical significance method, is utilized to assess the significance. For every connected component S = (V, E), we calculate the density β(S). We randomly sample subsets of |E| COGs each from the set of all possible COGs M. We estimate an empirical p-value as R/W, where W is the total number of random subsets generated (W ~ 1000) and R is the number of random subsets that produce a test statistics β() greater than or equal to that of β(S). We then use a cutoff (say 0.05) to identify the statistically significant components.

Declarations

Acknowledgements

This work was supported in part by the U.S. Department of Energy, Office of Science, the Office of Advanced Scientific Computing Research (ASCR) and the Office of Biological and Environmental Research (BER) and the U.S. National Science Foundation (Expeditions in Computing). The work by A.M.R. was supported by the Delores Auzenne Fellowship and the Alfred P. Sloan Minority PhD Scholarship Program. Oak Ridge National Laboratory is managed by UT-Battelle for the LLC U.S. D.O.E. under contract no. DEAC05-00OR22725.

This article has been published as part of Proteome Science Volume 10 Supplement 1, 2012: Selected articles from the IEEE International Conference on Bioinformatics and Biomedicine 2011: Proteome Science. The full contents of the supplement are available online at http://www.proteomesci.com/supplements/10/S1.

Authors’ Affiliations

(1)
Department of Computer Science, North Carolina State University
(2)
Computer Science and Mathematics Division, Oak Ridge National Laboratory
(3)
Department of Civil and Environmental Engineering, University of South Florida
(4)
Bioinformatics Research Center, North Carolina State University
(5)
RTI International

References

  1. Jensen L, Kuhn M, Stark M, Chaffron S, Creevey C, Muller J, Doerks T, Julien P, Roth A, Simonovic M, Bork P, von Mering C: STRING 8--a global view on proteins and their functional interactions in 630 organisms. Nucleic Acids Res 2009, 37: D412-D416. 10.1093/nar/gkn760PubMed CentralPubMedView ArticleGoogle Scholar
  2. Schmidt M, Rocha A, Padmanabhan K, Chen Z, Scott K, Mihelcic J, Samatova N: Efficient alpha, beta-motif finder for identification of phenotype-related functional modules. BMC Bioinformatics 2011, 12: 440. 10.1186/1471-2105-12-440PubMed CentralPubMedView ArticleGoogle Scholar
  3. Yan B, Gregory S: Finding missing edges and communities in incomplete networks. J Phys A 2011, 44: 495102. 10.1088/1751-8113/44/49/495102View ArticleGoogle Scholar
  4. Paccanaro A, Trifonov V, Yu H, Gerstein M: Inferrng protein-protein interactions using interaction network topologies. Proceedings of the International Joint Conference on Neural Networks 2005.Google Scholar
  5. Hendrix W, Rocha A, Padmanabhan K, Choudhary A, Scott K, Mihelcic J, Samatova N: DENSE: Efficient and prior knowledge-driven discovery of phenotype-associated protein functional modules. BMC Systems Biology 2011, 5: 172. 10.1186/1752-0509-5-172PubMed CentralPubMedView ArticleGoogle Scholar
  6. Spirin V, Mirny L: Protein complexes and functional modules in molecular networks. Proc Natl Acad Sci 2003, 100: 12123–12128. 10.1073/pnas.2032324100PubMed CentralPubMedView ArticleGoogle Scholar
  7. Hwang W, Cho Y, Zhang A, Ramanathan M: A novel functional module detection algorithm for protein-protein interaction networks. Algorithms Mol Biol 2006, 1: 24. 10.1186/1748-7188-1-24PubMed CentralPubMedView ArticleGoogle Scholar
  8. Habibi M, Eslahchi C, Wong L: Protein complex prediction based on k-connected subgraphs in protein interaction network. BMC Syst Biol 2010, 4: 129. 10.1186/1752-0509-4-129PubMed CentralPubMedView ArticleGoogle Scholar
  9. Stark C, Breitkreutz B, Reguly T, Boucher L, Breitkreutz A, Tyers M: BioGRID: A general repository for interaction datasets. Nucleic Acids Res 2006, 34: D535-D539. 10.1093/nar/gkj109PubMed CentralPubMedView ArticleGoogle Scholar
  10. Krogan N, Peng W, Cagney G, Robinson M, Haw R, Zhong G, Guo X, Zhang X, Canadien V, Richards D, Beattie B, Lalev A, Zhang W, Davierwala A, Mnaimneh S, Starostine A, Tikuisis A, Grigull J, Datta N, Bray J, Hughes T, Emili A, Greenblatt J: High-definition macromolecular composition of yeast RNA-processing complexes. Mol Cell 2004, 13: 225–239. 10.1016/S1097-2765(04)00003-6PubMedView ArticleGoogle Scholar
  11. Ho Y, Gruhler A, Heilbut A, Bader G, Moore L, Adams S, Millar A, Taylor P, Bennett K, Boutilier K, Yang L, Wolting C, Donaldson I, Schandorff S, Shewnarane J, Vo M, Taggart J, Goudreault M, Muskat B, Alfarano C, Dewar D, Lin Z, Michalickova K, Willems A, Sassi H, Nielsen P, Rasmussen K, Andersen J, Johansen L, Hansen L, Jespersen H, Podtelejnikov A, Nielsen E, Crawford J, Poulsen V, Sorensen B, Matthiesen J, Hendrickson R, Gleeson F, Pawson T, Moran M, Durocher D, Mann M, Hogue C, Figeys D, Tyers M: Systematic identification of protein complexes in Saccharomyces cerevisiae by mass spectrometry. Nature 2002, 415: 180–183. 10.1038/415180aPubMedView ArticleGoogle Scholar
  12. Gavin A, Bosche M, Krause R, Grandi P, Marzioch M, Bauer A, Schultz J, Rick J, Michon A, Cruciat C, Remor M, Hofert C, Schelder M, Brajenovic M, Ruffner H, Merino A, Klein K, Hudak M, Dickson D, Rudi T, Gnau V, Bauch A, Bastuck S, Huhse B, Leutwein C, Heurtier M, Copley R, Edelmann A, Querfurth E, Rybin V, Drewes G, Raida M, Bouwmeester T, Bork P, Seraphin B, Kuster B, Neubauer G, Superti-Furga G: Functional organization of the yeast proteome by systematic analysis of protein complexes. Nature 2002, 415: 141–147. 10.1038/415141aPubMedView ArticleGoogle Scholar
  13. Gavin A, Aloy P, P G, Krause R, Boesche M, Marzioch M, Rau C, Jensen L, Bastuck S, Dmpelfeld B, Edelmann A, Heurtier M, Hoffman V, Hoefert C, Klein K, Hudak M, Michon A, Schelder M, Schirle M, Remor M, Rudi T, Hooper S, Bauer A, Bouwmeester T, Casari G, Drewes G, Neubauer G, Rick J, Kuster B, Bork P, Russell R, Superti-Furga G: Proteome survey reveals modularity of the yeast cell machinery. Nature 2006, 440: 631–636. 10.1038/nature04532PubMedView ArticleGoogle Scholar
  14. Wilson K, Rocha A, Padmanabhan K, Wang K, Chen Z, Jin Y, Mihelcic J, Samatova N: Detecting pathway cross-talks by analyzing conserved functional modules across multiple phenotype-expressing organisms. Proceedings of the IEEE International Conference Bioinformatics & Biomedicine 2011, 443–449.Google Scholar
  15. Kastenmuller G, Schenk M, Gasteiger J, Mewes H: Uncovering metabolic pathways relevant to phenotypic traits of microbial genomes. Genome Biol 2009, 10: R28. 10.1186/gb-2009-10-3-r28PubMed CentralPubMedView ArticleGoogle Scholar
  16. Slonim N, Elemento O, Tavazoie S: Ab initio genotype-phenotype association reveals intrinsic modularity in genetic networks. Mol Syst Biol 2006, 2: 2006.0005.PubMed CentralPubMedView ArticleGoogle Scholar
  17. Nath K, Das D: Improvement of fermentative hydrogen production: Various approaches. Appl Microbiol Biotechnol 2004, 65: 520–529.PubMedView ArticleGoogle Scholar
  18. Kapdan FI, Kargi : Bio-hydrogen production from waste materials. Enzyme Microb Technol 2006, 38: 569–582. 10.1016/j.enzmictec.2005.09.015View ArticleGoogle Scholar
  19. Brentner L, Peccia J, Zimmerman J: Challenges in developing biohydrogen as a sustainable energy source: Implications for a research agenda. Environ Sci Technol 2010, 44: 2243–2254. 10.1021/es9030613PubMedView ArticleGoogle Scholar
  20. Rey F, Heiniger E, Harwood C: Redirection of metabolism for biological hydrogen production. Appl Environ Microbiol 2007, 73: 1665–1671. 10.1128/AEM.02565-06PubMed CentralPubMedView ArticleGoogle Scholar
  21. Rey F, Oda Y, Harwood C: Regulation of uptake hydrogenase and effects of hydrogen utilization on gene expression in Rhodopseudomonas palustris. J Bacteriol 2006, 188: 6143–6152. 10.1128/JB.00381-06PubMed CentralPubMedView ArticleGoogle Scholar
  22. Lathe W, Williams J, Mangan M, Karolchik D: Genomic data resources: Challenges and promises. Nature Edu 2008.,1(3):Google Scholar
  23. Lopez-Gomollón S, Hernández J, Pellicer S, Angarica V, Peleato M, Fillat M: Cross-talk between iron and nitrogen regulatory networks in Anabaena (Nostoc) sp. PCC 7120: Identification of overlapping genes in FurA and NtcA regulons. J Mol Biol 2007, 374: 267–281. 10.1016/j.jmb.2007.09.010PubMedView ArticleGoogle Scholar
  24. Kovacs KL, Bagi Z, Balint B, Fodor Bd, Scnadi G, Csaki R, Hanczar T, Kovacs AT, Maroti G, Perei K, Toth A, Rakhely G: Novel approaches to exploit microbial hydrogen metabolism Biohydrogen III. Edited by: Miyake J, Igarashi Y, Rogner M. USA: Elsevier Inc; 2004.Google Scholar
  25. Vignais P, Billoud B, Meyer J: Classification and phylogeny of hydrogenases. FEMS Microbiol Rev 2001, 25: 455–501.PubMedView ArticleGoogle Scholar
  26. Miyake J: Biohydrogen. New York, USA: Plenum Press; 1998.Google Scholar
  27. Shima S, Thauer R: A third type of hydrogenase catalyzing H2 activation. Chem Rec 2007, 7: 37–46. 10.1002/tcr.20111PubMedView ArticleGoogle Scholar
  28. White D: The physiology and biochemistry of prokaryotes. Oxford, England: Oxford University Press, Inc; 2000.Google Scholar
  29. Butland G, Zhang J, Yang W, Sheung A, Wong P, Greenbalt J, Emili A, Zamble D: Interactions of the Es-cherichia coli hydrogenase biosynthetic proteins: HybG complex formation. FEBS Lett 2006, 580: 677–681. 10.1016/j.febslet.2005.12.063PubMedView ArticleGoogle Scholar
  30. Guerrini O, Soucaille P, Girbal L, Guigliarelli B, Leger C, Burlat B, Léger C: Characterization of Two 2[4Fe4S] Ferredoxins from Clostridium acetobutylicum. Curr Microbiol 2008, 56: 261–267. 10.1007/s00284-007-9072-xPubMedView ArticleGoogle Scholar
  31. Yu J, Takahashi P: Biophotolysis-based hydrogen production by Cyanobacteria and green microalgae. In Communicating Current Research and Educational Topics and Trends in Applied Microbiology. Edited by: Mendez-Vilas A. 2007, 1: 79–89.Google Scholar
  32. Thomaz A, Pozzo L, Fontes A, Almeida D, Stahl C, Santos-Mallet J, Gomes S, Feder D, Ayres D, Giorgio S, Cesar C: Optical tweezers force measurements to study parasites chemotaxis. Adv Micro Tech 2009., 7367: Google Scholar
  33. Liu Y, Li J, Sam L, Goh C, Gerstein M, Lussier Y: An integrative genomic approach to uncover molecular mechanisms of prokaryotic traits. PLoS Comput Biol 2006,2(11):e159. 10.1371/journal.pcbi.0020159PubMed CentralPubMedView ArticleGoogle Scholar
  34. Gross R, Beier D: PLoS Comput Biol. Caister Academic Press; 2011.Google Scholar
  35. Tamura M, D'haeseleer P: Microbial genotypephenotype mapping by class association rule mining. Bioinformatics 2008, 24: 1523–1529. 10.1093/bioinformatics/btn210PubMed CentralPubMedView ArticleGoogle Scholar
  36. Tamura M, D'haeseler P: Comparative genome content analysis with respect to basic microbial phenotypes by class association rule mining. Proceedings of the International Conference on Systems Biology 2007.Google Scholar
  37. Goh C, Gianoulis T, Liu J Yand Li, Paccanaro A, Lussier Y, Gerstein M: Integration of curated databases to identify genotype-phenotype associations. BMC Genomics 2006, 7: 257. 10.1186/1471-2164-7-257PubMed CentralPubMedView ArticleGoogle Scholar
  38. Vitreschak AG, Mironov A, Lyubetsky V, Gelfand M: Comparative genomic analysis of T-box regulatory systems in bacteria. RNA 2008, 14: 717–735. 10.1261/rna.819308PubMed CentralPubMedView ArticleGoogle Scholar
  39. Jensen L, Kuhn M, Stark M, Chaffron S, Creevey C, Muller J, Doerks T, Julien P, Roth A, Simonovic M, Bork P, von Mering C: STRING 8-a global view on proteins and their functional interactions in 630 organisms. Nucleic Acids Res 2009, 37: D412–416. 10.1093/nar/gkn760PubMed CentralPubMedView ArticleGoogle Scholar
  40. Tatusov R, Galperin M, Natale D, Koonin E: The COG database: A tool for genome-scale analysis of protein functions and evolution. Nucleic Acids Res 2000, 28: 33–36. 10.1093/nar/28.1.33PubMed CentralPubMedView ArticleGoogle Scholar
  41. Prelic A, Bleuler S, Zimmermann P, Wille A, Bühlmann P, Gruissem W, Hennig L, Thiele L, Zitzler E: A systematic comparison and evaluation of biclustering methods for gene expression data. Bioinformatics 2006, 22: 1122–1129. 10.1093/bioinformatics/btl060PubMedView ArticleGoogle Scholar
  42. North B, Curtis D, Sham P: A note on the calculation of empirical p -values from Monte Carlo procedures. Am J Hum Genet 2002, 71: 439–441. 10.1086/341527PubMed CentralPubMedView ArticleGoogle Scholar
  43. Zhang B, Park B, Karpinets T, Samatova N: From pull-down data to protein interaction networks and complexes with biological relevance. Bioinformatics 2008,24(7):979–986. 10.1093/bioinformatics/btn036PubMedView ArticleGoogle Scholar

Copyright

© Padmanabhan et al; licensee BioMed Central Ltd. 2012

This article is published under license to BioMed Central Ltd. This is an open access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Advertisement
